SKU
FL-COU-U

Slides bracket

Slides bracket steel zinc
CDN$0.96
Stocks
Farnham: 18443
Los Angeles: 1742
Lawrenceville: 6876
  • Stabilizes drawers slides
  • Low profile
  • 330 units per box (please order individually)

The FL-COU-U is a rail bracket specifically engineered to fit our 28 mm pipes in order to stabilize drawer slides on any Flexpipe structure.

This bracket comes with a perforation in the center to accurately install any drawer slide in the center of any pipe.

Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK

Installation Steps:
See the installation steps tab to view how to install the FL-COU-U

Want to reuse parts of your old system?
The FL-COU-U is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.

More Information
Box Quantity330
Length1 1/4 in (32.6 mm)
Height13/16 in (20 mm)
Width1 1/8 in (29 mm)
Weight0.081 lb (0.263 kg)
Box DimensionsCardboard box of11 X 9 X 5 in (279 mm X 229 mm X 127 mm)
Common UsageDrawer
Compatible brandFlexpipe, Creform, Fastube
Non Compatible BrandTrilogiq
Primary MaterialGalvanised Hot rolled steel (SPHC)
Temperature Resistance-58°F to 185°F (-50°C to 85°C)
Electric Conductivity (ESD)Yes

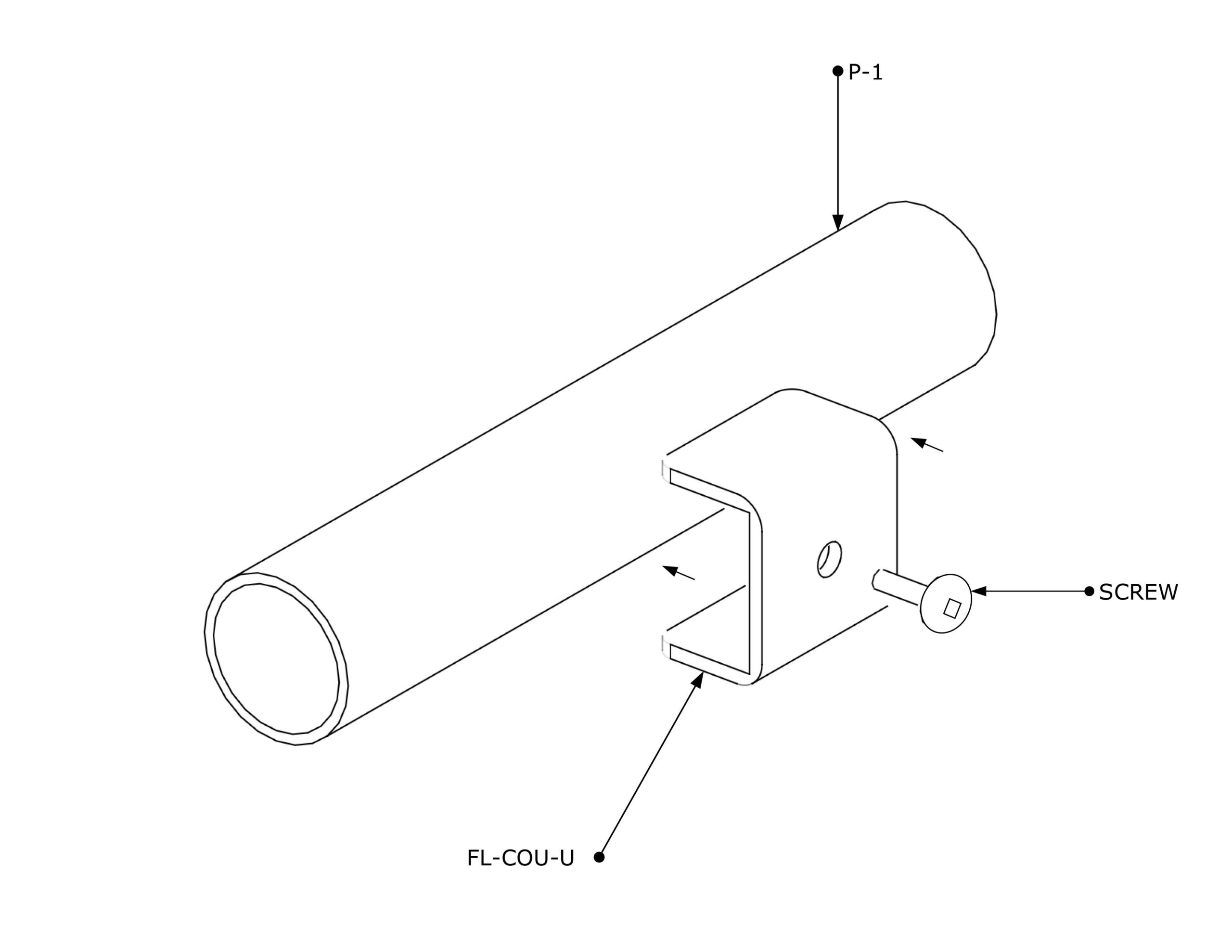

  1. Ensure you have the following parts:
    • 1x FL-COU-U
    • 1x F-A85/8
    • 1x 28mm pipe of your choice
    • 1x Drill w/ #2 square head
  2. Press fit FL-COU-U in desired position. (adjust so hole is centered on pipe)
  3. Align holes in drawer slide with holes of FL-COU-U
  4. Fix the drawer slide through FL-COU-U to the P1 pipe with an F-A85/8 screw.
