SKU
HJ-19NP
Parallel hinge joint set - DISCONTINUED
Paral. hinge joint set steel cr - DISCONTINUED
CDN$5.40
In stock
DISCONTINUED
DISCONTINUED
Please, see our regular HJ-23NP
Weight | 0.319 lb (0.145 kg) |
---|---|
Electric Conductivity (ESD) | Yes (10– 10^3) |
1- Make sure you have the following parts:
2 H-19NP
1 AP-HINGE
1 M6-25BWZ
1 M6-NWZ
2 28mm pipes of your choice
1 Allen key or one drill equipped with an Allen Key 5mm tip

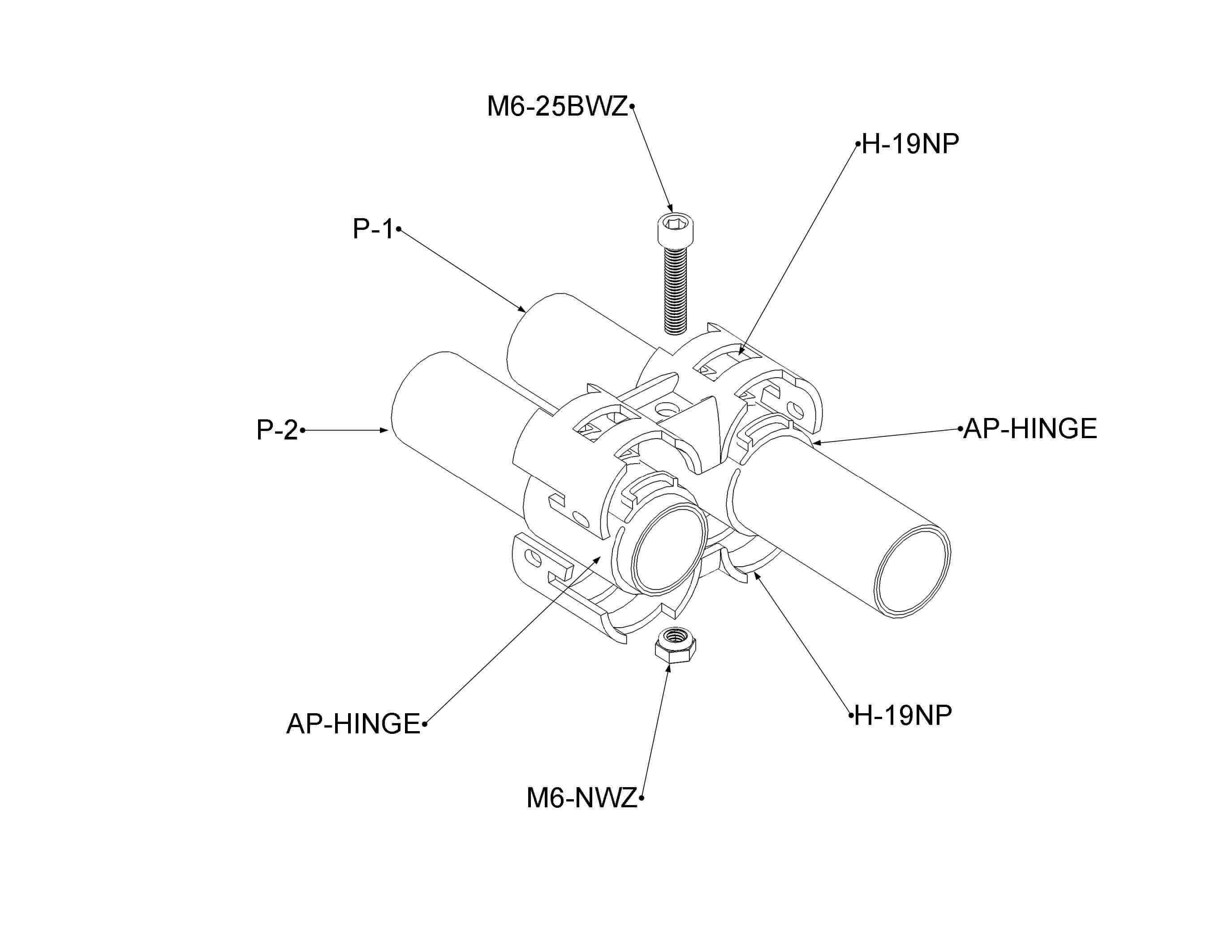

2- Take two AP-Hinge and press them on the P1 and P2 pipes until the hinge are fix. 3- Take two connectors H-19NP and group them around the both AP-HINGE.
4-Take a M6-25BWZ bolt and a M6-NWZ nut and insert them into the corresponding openings. Make sure to put the bolt on the more accessible side.
5- Tighten completely the M6-25BWZ bolt and M6-NWZ nut together until the HJ-19NP attached firmly to hinge . A force of 9.8 Nm is recommended for this step.
2 H-19NP
1 AP-HINGE
1 M6-25BWZ
1 M6-NWZ
2 28mm pipes of your choice
1 Allen key or one drill equipped with an Allen Key 5mm tip
2- Take two AP-Hinge and press them on the P1 and P2 pipes until the hinge are fix. 3- Take two connectors H-19NP and group them around the both AP-HINGE.
4-Take a M6-25BWZ bolt and a M6-NWZ nut and insert them into the corresponding openings. Make sure to put the bolt on the more accessible side.
5- Tighten completely the M6-25BWZ bolt and M6-NWZ nut together until the HJ-19NP attached firmly to hinge . A force of 9.8 Nm is recommended for this step.
