Embed bracket support
- Embed surfaces
- Great for panel installation
- Increase surface support
The AI-SUPPORT is a metal anchor joint.
It can be used to increase the number of supporting points for surfaces on any kind of structure. We use it in collaboration with the AI-CORNER to create embedded surfaces.
Great for small to medium-sized surfaces that are rigid enough not to bend in the middle, however with larger sized surfaces where heavier loads may be applied the AI-CENTER might be the better alternative.
Antistatic (ESD):
Compatible with EP-96-ST and EP-96-BK
Installation Steps:
See the installation steps tab to view how to install the AI-SUPPORT
Want to reuse parts of your old system?
The AI-SUPPORT is compatible with many other pipe and connector systems. Check the technical information tab to know which systems are compatible and non-compatible with our parts.
| Units per box (sold separately) | 100 |
|---|---|
| Height inches | 7/8 in (22mm) |
| Width inches | 2 1/2 in (64mm) |
| Depth inches | 1 11/16 in (43mm) |
| Unit weight pounds | 0.154 lbs (0.070 kg) |
| Box dimensions inches | 11 X 9 X 5 in (279mm X 229mm X 127mm) |
| Recyclable | Yes |
| Compatible pipe systems | Flexpipe, Creform, Fastube |
| Noncompatible pipe systems | Trilogiq |
| Reusable | Yes |
| Electric conductivity (ESD) | Yes |
| Material | Hot rolled steel (SPHC) |
| Steel hardness (HRB) | 0.65 |
| Finish | Glossy |
| System operational temperature | -58°F à 185°F (-50°C à 85°C) |
| Steel treatment | Galvanised |
| Manufacturing technique | Folded and welded |
- Ensure you have the following parts:
- 1x AI-SUPPORT
- 1x F-A85/8
- 1x F-S81/2
- 1x 28mm pipes of your choice
- 1x Surface of your choice
- 1x Drill w/ #2 square head

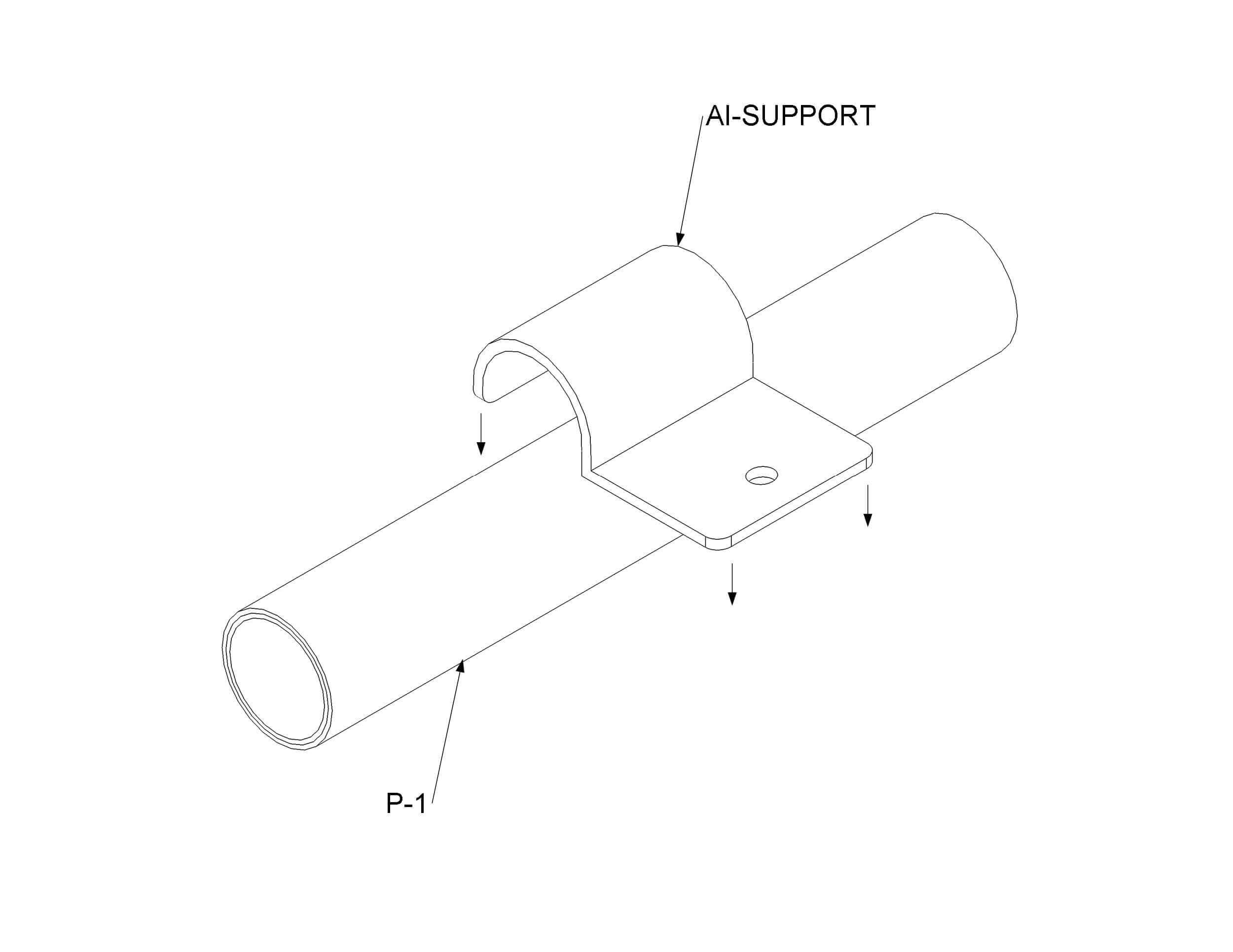

- Press-fit an AI-SUPPORT on the P1 pipe in the desired position.
- Fix the AI-SUPPORT to the P1 pipe with one F-A85/8 screw.
- Install the S1 surface of the AI-SUPPORT.
- Fix the S1 surface to AI-SUPPORT with one F-S81/2 screw
